Split Cell

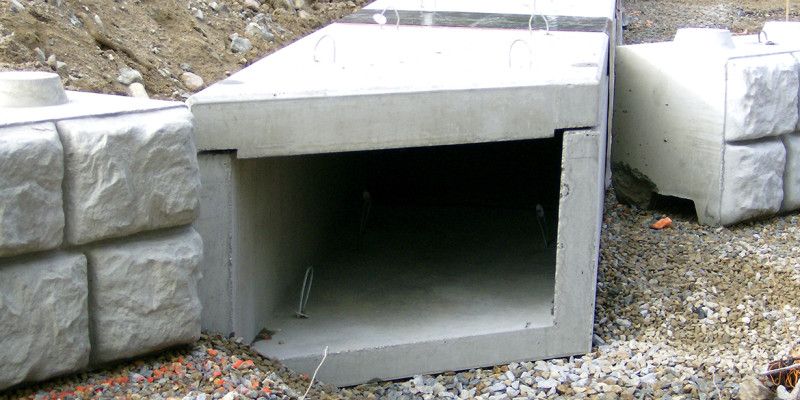

  • split-cell-culvert-concrete

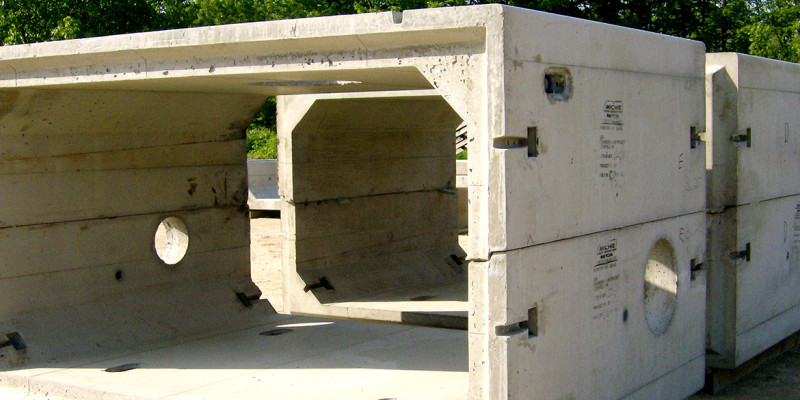

  • split-cell-culvert-Henniker-NH

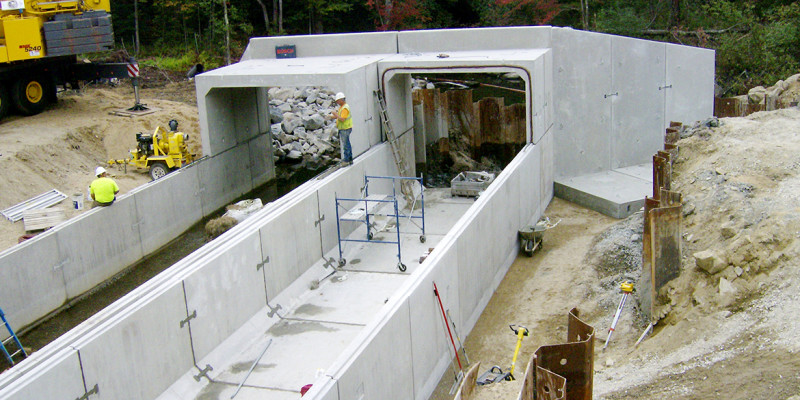

  • split-cell-culvert-precast-concrete-NH

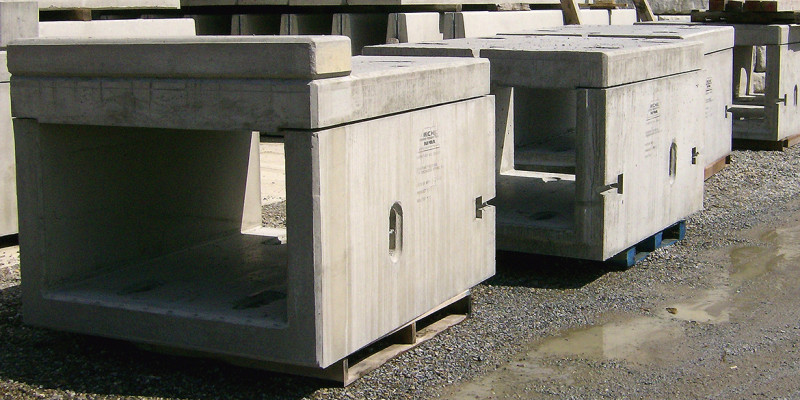

  • split-cell-redi-mix-concrete

Split cell or open top box culverts have many benefits over typical single cell box culverts. Split cell culverts are poured with a bell section cast into each wall making a matching top and bottom. The 2 piece design of a split cell box culvert reduces the overall weight of each piece. This allows easy installation using smaller cranes, or even excavators. Open top box culverts are cast as a 3 sided box culvert with a removable top slab. The removable top slab or top section also allows for easy placement of natural stone fill along the bottom of the culvert run.

Split Cell Precast Box Culverts are ideal for situations where site conditions demand wide, shallow conduits to handle required flows, as well as:

  • Jobsites that require placement with excavators, or where large cranes don’t have proper access.
  • Installations where round concrete pipe cannot provide adequate flow capacity
  • As a faster and stronger substitute for cast-in-place box culverts, long-span metal arches, or multibarrel circular culverts


Split Cell Precast Box Culverts can be used for the following:

  • Highway culverts
  • Short-span highway bridges
  • Storm drains
  • Extension of existing box culverts
  • Utility tunnels
  • Groundwater recharge systems
  • To replace existing open channels or ditches, enabling land to be used productively
  • Jacked or tunneled installations
  • Railroad culverts
  • Placed side by side to create twice the flow
  • Livestock, pedestrian or golf cart undercrossings


Split Cell Precast Box Culverts are available in a variety of spans and rises.


A variety of natural form liners, stone retention baffles, skewed or plumed ends, headwalls or curbwalls, wingwalls, even cast in wildlife crossing are available.

Benefits of Precast

  • Easy to handle sections
  • Superior strength and durability
  • Fast easy instillation
  • Reduced on site labor costs
  • Reduced downtime to local roads and traffic
  • Quality - Produced in controlled environments utilizing strict NPCA standards
  • Long life span
  • Locally manufactured
  • Proven design
